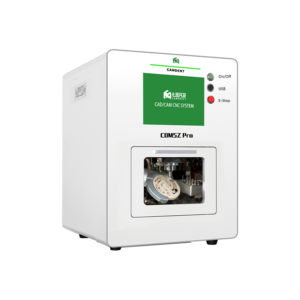

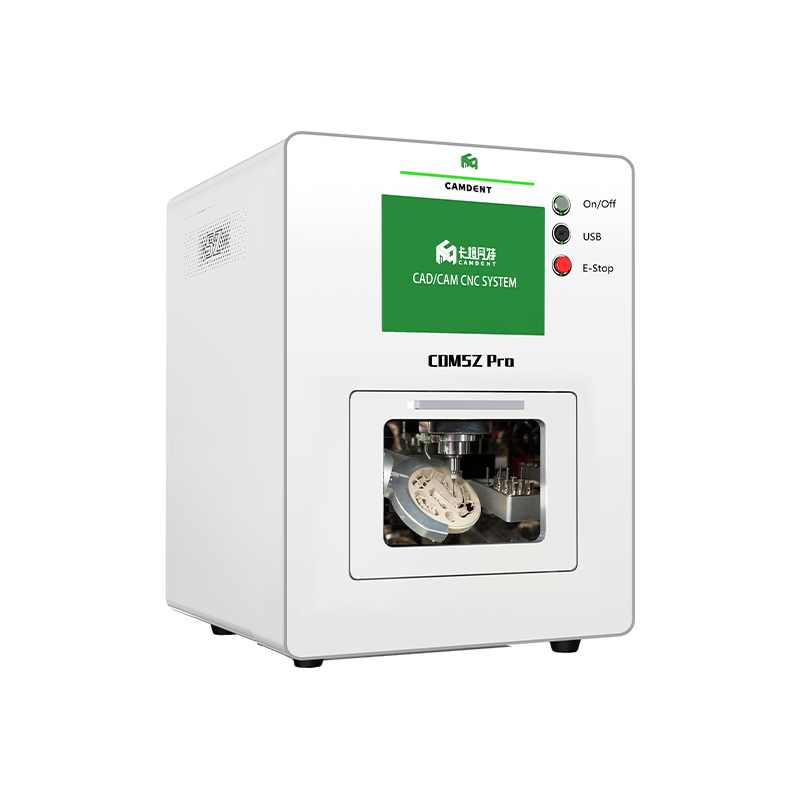

5 Axis CAD CAM Milling Machine-CDM5Z-Pro
5 Axis CAD CAM Milling Machine Camdent CDM5Z-Pro is a compact and high-performance 5-axis dry dental milling machine for CAD/CAM laboratories. With an 800W spindle, 60,000 rpm maximum speed, automatic tool changing, touchscreen control, and air-cooled operation, it delivers precise and efficient milling of zirconia, PEEK, PMMA, and wax for crowns, bridges, abutments, veneers, dentures, and other dental restorations.
27
People watching this product now!
Description
The 5 Axis CAD CAM Milling Machine-CDM5Z-Pro is a high-precision 5-axis dry milling machine designed for modern dental CAD/CAM laboratories. It combines a rigid box-type structure, high-performance 800W spindle, intelligent touchscreen control, automatic tool changing, and 5-axis simultaneous machining to deliver accurate and efficient dental restorations.
Designed for processing materials such as zirconia, PEEK, PMMA, and wax, the CDM5Z-Pro is suitable for a wide range of applications including crowns, bridges, implant bridges, veneers, inlays, onlays, abutments, surgical guides, splints, and full dentures.
Its compact footprint makes it suitable for dental laboratories where space and productivity are important. The machine uses an air-cooled spindle and does not require an air compressor, while its automatic tool change and integrated protection alarms help simplify daily operation and improve reliability.
The CDM5Z-Pro supports NC-code operation and is compatible with commonly used open dental CAD/CAM workflows, making it an efficient solution for high-precision digital dentistry.
https://szcamdent.com/index/product/details/id/33.html
| Technical Specification | Details |
| Product Model | CDM5Z-Pro |
| Machine Type | 5-Axis CAD/CAM Dental Milling Machine |
| Milling Method | Dry Milling |
| Number of Axes | 5 Axis |
| Spindle Power | 800 W |
| Maximum Spindle Speed | 60,000 RPM |
| Spindle Cooling | Air-Cooled |
| Tool Capacity | 6 Tools |
| Tool Change System | Automatic |
| Tool Shank Diameter | 4 mm |
| Maximum Tool Length | 45 mm |
| A-Axis Rotation | ±360° |
| B-Axis Rotation | -100° to +30° |
| A-Axis Motor Power | 100 W |
| B-Axis Motor Power | 200 W |
| X/Y/Z Axis Drive | Servo Motor |
| Supported Materials | Zirconia, PEEK, PMMA, Wax |
| Workpiece Diameter | 98–98.5 mm |
| Maximum Workpiece Height | 30 mm |
| Minimum Workpiece Height | 10 mm |
| Control System | Touchscreen CNC |
| Control Format | NC Code |
| Power Supply | 220 V, 50/60 Hz, Single Phase |
| Air Compressor | Not Required |
| Machine Dimensions (L × W × H) | 500 × 650 × 620 mm |
| Packing Dimensions (L × W × H) | 780 × 750 × 980 mm |
| Net Weight | 110 kg |
| Gross Weight | 146 kg |
| Applications | Crowns, Bridges, Implant Bridges, Veneers, Inlays, Onlays, Copings, Abutments, Surgical Guides, Full Dentures, Splints |
Additional information
| Weight | 146 kg |
|---|---|
| Dimensions | 780 × 750 × 980 cm |
