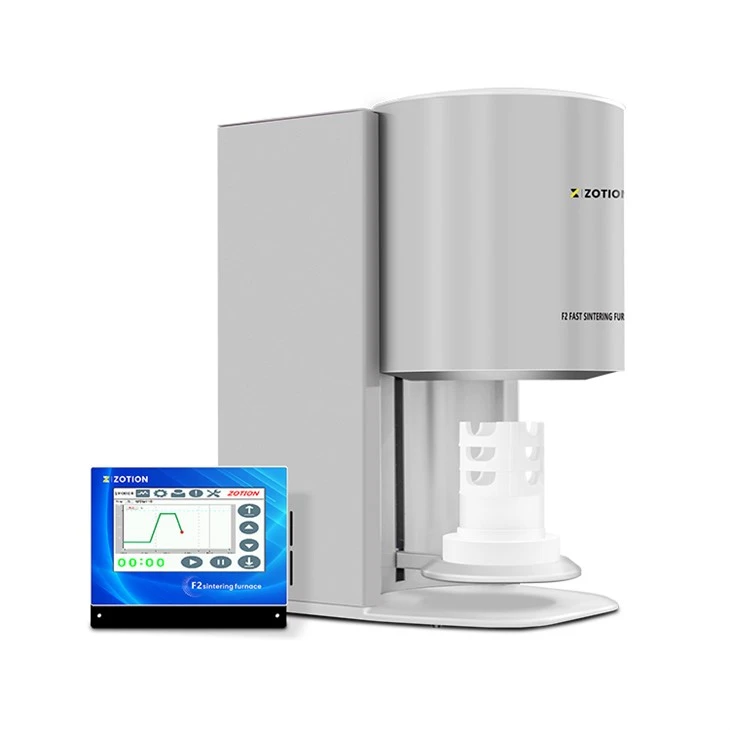

Zotion F2 Fast Sintering Furnace for Dental Zirconia

Zotion F2 Fast Dental Sintering Furnace

The Zotion F2 Economic Fast Sintering Furnace is designed for dental laboratories and clinics requiring efficient, reliable and flexible sintering performance. It is suitable for processing dental zirconia, glass ceramics and glazing applications, while supporting both fast and conventional sintering programs.

With a maximum temperature of 1650°C and a heating rate of up to 100°C/min, the F2 is designed to reduce heating time while maintaining precise temperature control. Its double-shell insulated construction supports efficient heating and cooling during the sintering process.

The furnace features a 100 × 200 mm chamber with a three-layer sintering tray, allowing multiple restorations to be processed in the same cycle. Zotion states that the chamber can accommodate up to three crucibles, with capacity of up to 90 crowns depending on the loading configuration.

Easy Touchscreen Operation

The F2 uses a separate touchscreen control system that allows operators to set and monitor heating, holding and cooling parameters. It supports programmable sintering profiles, giving dental laboratories flexibility for different materials and restoration requirements.

Fast and Conventional Sintering

The Zotion F2 supports both fast sintering and slow/standard sintering, allowing the operator to select an appropriate firing cycle according to the material and restoration being processed.

Precision Temperature Control

The furnace provides a stated temperature accuracy of ±1°C and uses silicon molybdenum heating elements for high-temperature operation. The maximum temperature is 1650°C, with a continuous working temperature of 1600°C.

The compact design makes the F2 suitable for dental laboratories and clinics where workspace is limited while still requiring a high-temperature dental sintering furnace.
